Features
• Output: Constant voltage
• Input Range: 120VAC
• PFC Design: Built-in active PFC function
• Protections: Short circuit/over load/over temperature
• Heat Dissipation: Cooling by free air convenction
• Waterproof Performance: For dry and damp locations (US)
• Design Features:
- Fine-tune output voltage can be adjusted slightly

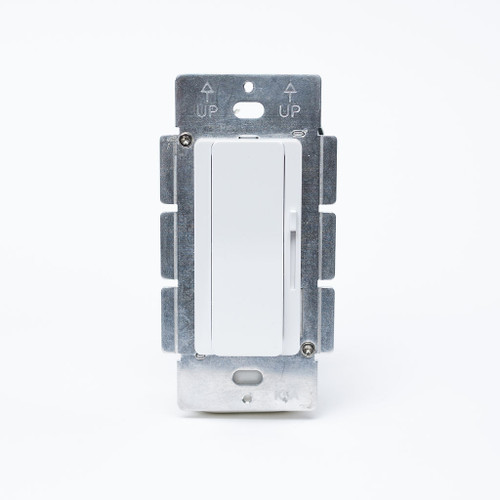

- Preset dimmer with on/off switch
- 3-Way switches
- Eliminated compatibility issues between drivers and switches
• Dimming Range: 0.3%-100%
• Application: Suitable for the application of LED lighting
Output
• DC Rate Voltage: 12V
• Voltage Tolerance: +/-0.5V
• Load Regulation: <2%
• Line Regulation: <0.5%
• Rated Current: 5A
• Rated Power: 60W
Input
• Voltage Range: 120VAC
• Frequency Range: 60Hz
• Power Factor @ Full Load: 0.99
• THD @ Full Load: <10%
• Efficiency @ Full Load: 90.0%
• AC Current (Max.): 0.6A
For more information, Click Here - PDF
Please contact us for any additional options seen on specification sheet.
